Paper unloader
Automatically unload cutted paper

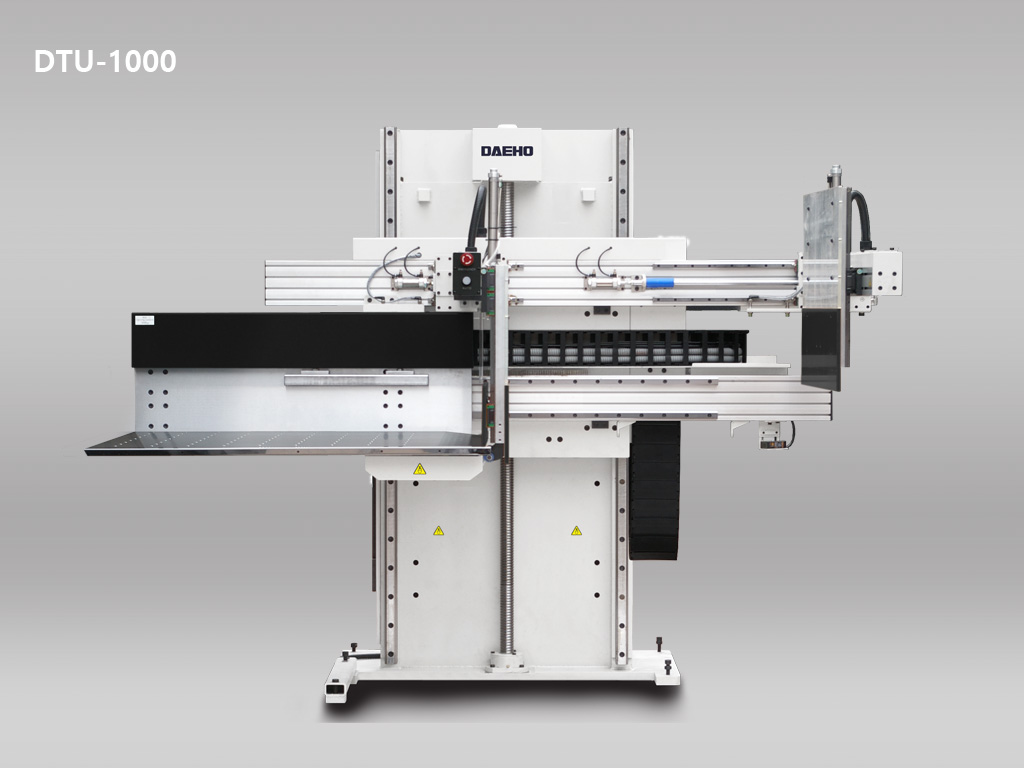

DAEHO Paper unloader
Product information
- Category: Paper unloader
- Dimension confirmation: Automatic measurement sensor
- unloading direction: Bottom left, bottom right (confirmed when ordering)
- DAEHO DTU automatic unloader transfers sheets onto pallet. Full unloading operation is done by just one push button and operator can do cutting operation while unloading is going on. DAEHO’s unloader gives better productivity and precise alignment for cutting job with cutter
Basic Features
- Full automation of loading operations enhances operational efficiency.
- 2-stage variable speed table and conveyor speed adjustment
- Safe design in accordance with European standards
- Automatic vertical alignment of the loaded materials
- Smooth transfer of materials with the application of an air table
- Custom manufacturing available for dimensions other than DTU-1000 and DTU-1400

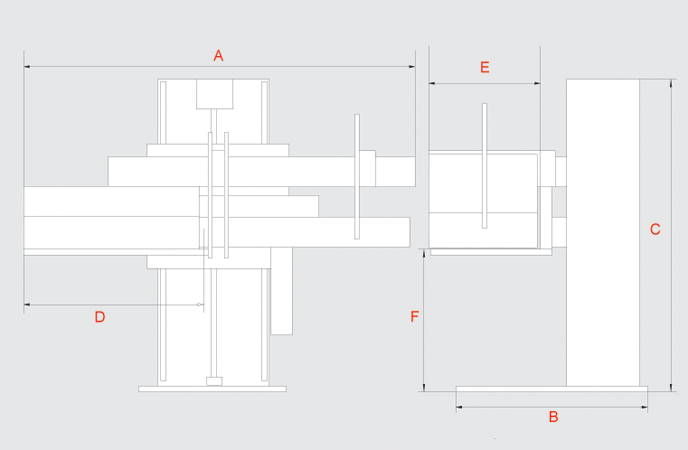

Specification |
|||||||
| Model | DTU-1000 | DTU-1400 | |||||
| A Machine width | ㎜ | 2,900 | 3,700 | ||||
| B Machine length | ㎜ | 1,850 | 1,900 | ||||
| C Machine height | ㎜ | 1,970 | 1,970 | ||||
| D Table width | ㎜ | 1,200 | 1,450 | ||||
| E Table length | ㎜ | 800 | 1,000 | ||||
| F Max. Stack height | ㎜ | 1,400 | 1,400 | ||||
| Max. unloading width | ㎜ | 1,160 | 1,350 | ||||
| Min. unloading width | ㎜ | 400 | 400 | ||||
| Max. unloading height | ㎜ | 165 | 165 | ||||
| Max. unloading weight | kg | 300 | 300 | ||||
| Power | kw | 2.4 | 2.4 | ||||
| Machine weight | kg | 1,650 | 1,800 | ||||
| ⊕ Subject to change and improvement without notice. | |||||||
 |

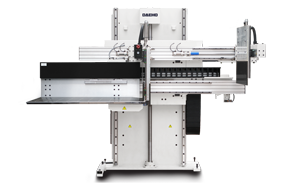

| Model : DTU-1000, DTU-1400 |
