The Simple and robust c Cutter series is the entry model of the DAEHO’s computer programmable paper cutters.

The C series cutter are designed to the highest standard to achieve one of the safest and most reliable modern cutters.

Features

  • Most of controlling can be done on the 10″ Touch-LCD screen
  • Advanced User interface provides easy view and easy to use
  • Important variables are protected by password. By storing factory settings separately so that system can be restored from error which is cause by misuse of user.
  • It is supported for user to control the timing that clamp comes up so that faster cutting is available.
  • All basic functions which are required in cutting
  • Memory capability : 1000 processes 1000 steps
  • Error number display function
  • Check machine in-output through 5.6″ TFT-LCD screen
  • Function(mathematical) input function
  • Macro auto input function
  • Safety
  • Backgauage moving system

Specification

Model c-1580 c-1370 c-1160 c-860 c-780 c-570
A Cutting width ㎜ 1580 1370 1160 860 780 570
B Cutting opening ㎜ 165 165 165 155 140 120
C Cutting depth ㎜ Max. 1580 1370 1160 860 780 570
Min. 38 30 30 30 25 15
D Front table length ㎜ 720 720 720 635 650 450
E Table height ㎜ 900 900 900 865 900 865
F Machine length ㎜ 3210 2715 2655 2035 1920 1300
G Machine width ㎜ 3140 2630 2420 1990 1640 1180
H Machine Height ㎜ 1720 1660 1660 1535 1500 1390
Cutting Speed r.p.m 48 48 48 45 45 38
Power ㎾ Main motor 5.5 4 4 4 2.2 1.5
Backgauge 1 0.5 0.5 0.5 0.5 0.2
Air table 0.4 0.4 0.4 0.4 0.2 0.2
Backgauge speed m/min Max. 20 20 20 20 20 10
Min. 1 1 1 1 1 1
Driving System Double
Clank		 Double
Clank		 Double
Clank		 Single
Clank		 Single
Clank		 Single
Clank
Clamp pressure ㎏ Min. 200 200 200 200 200 500
Max. 4500 4500 4500 4500 3000 1500
Machine weight ㎏ 5800 5000 4150 2440 2030 1000

⊕ Subject to change and improvement without notice.

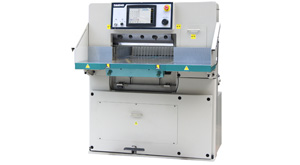

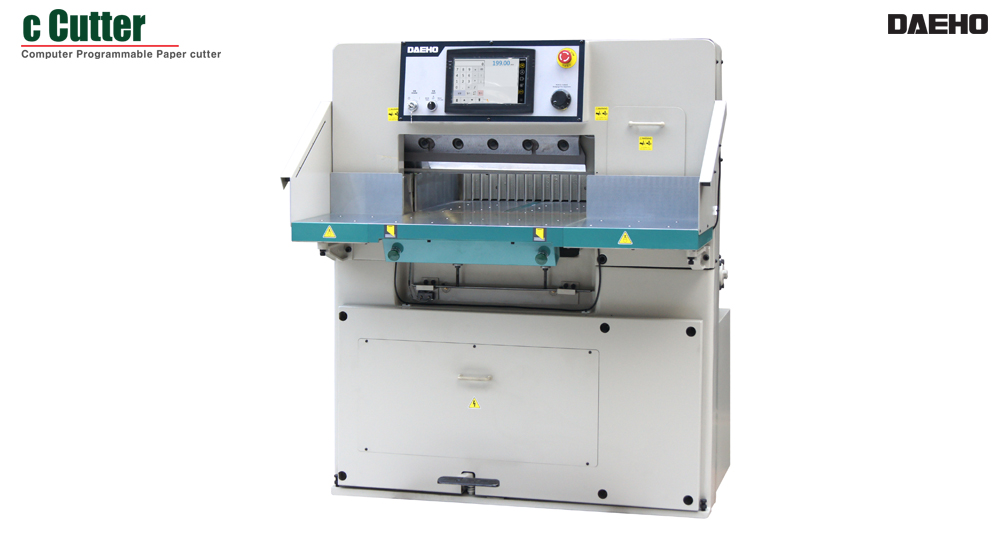

c-570

Cutting size :
Max.  570mm

c-780

Cutting size :
Max.  780mm

c-860

Cutting size :
Max.  860mm

c-1160

Cutting size :
Max.  1160mm

c-1370

Cutting size :
Max.  1370mm

c-1580

Cutting size :
Max.  1580mm

For more information about c Cutter, please do not hesitate to contact us.
